Meet diverse printing needs while saving time and space

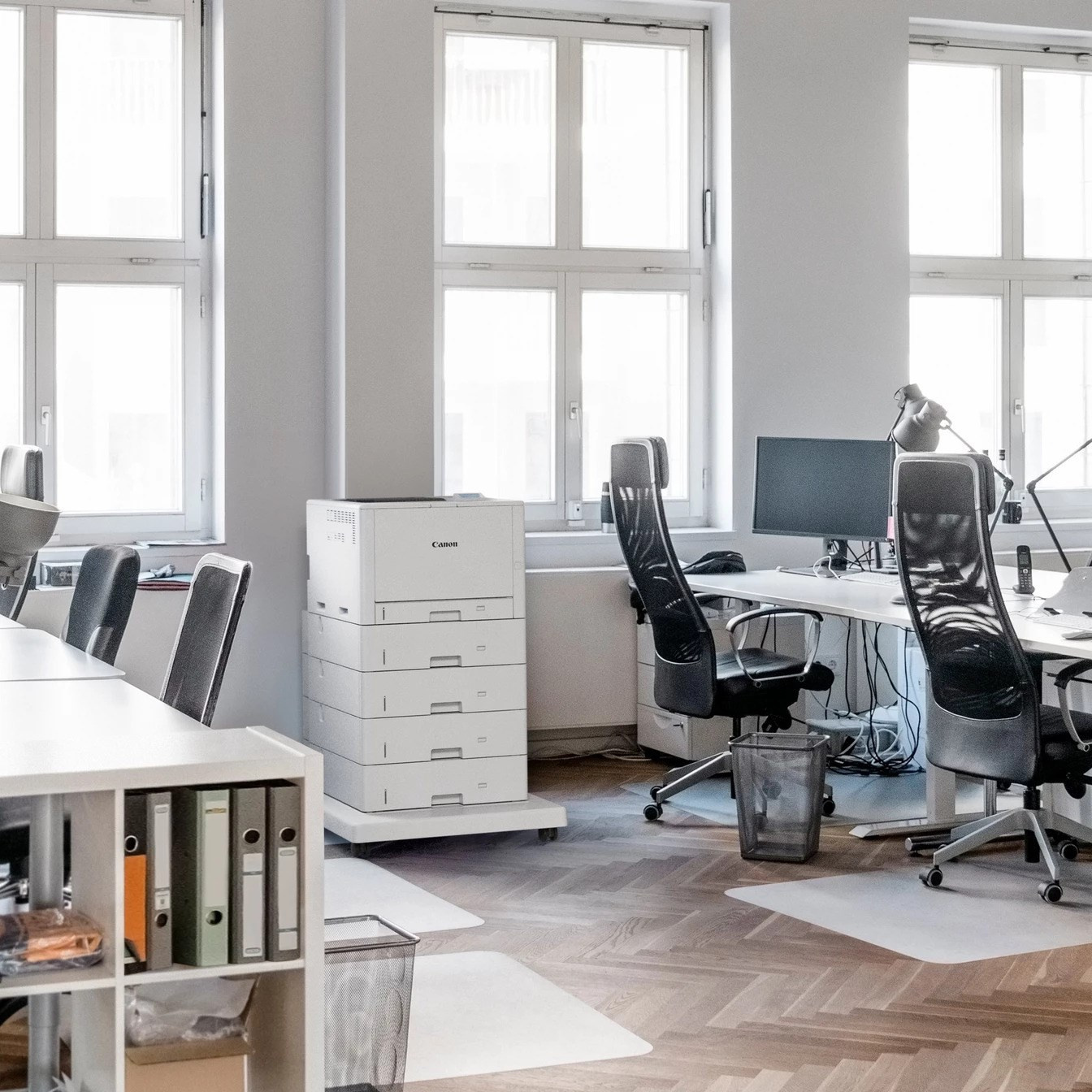

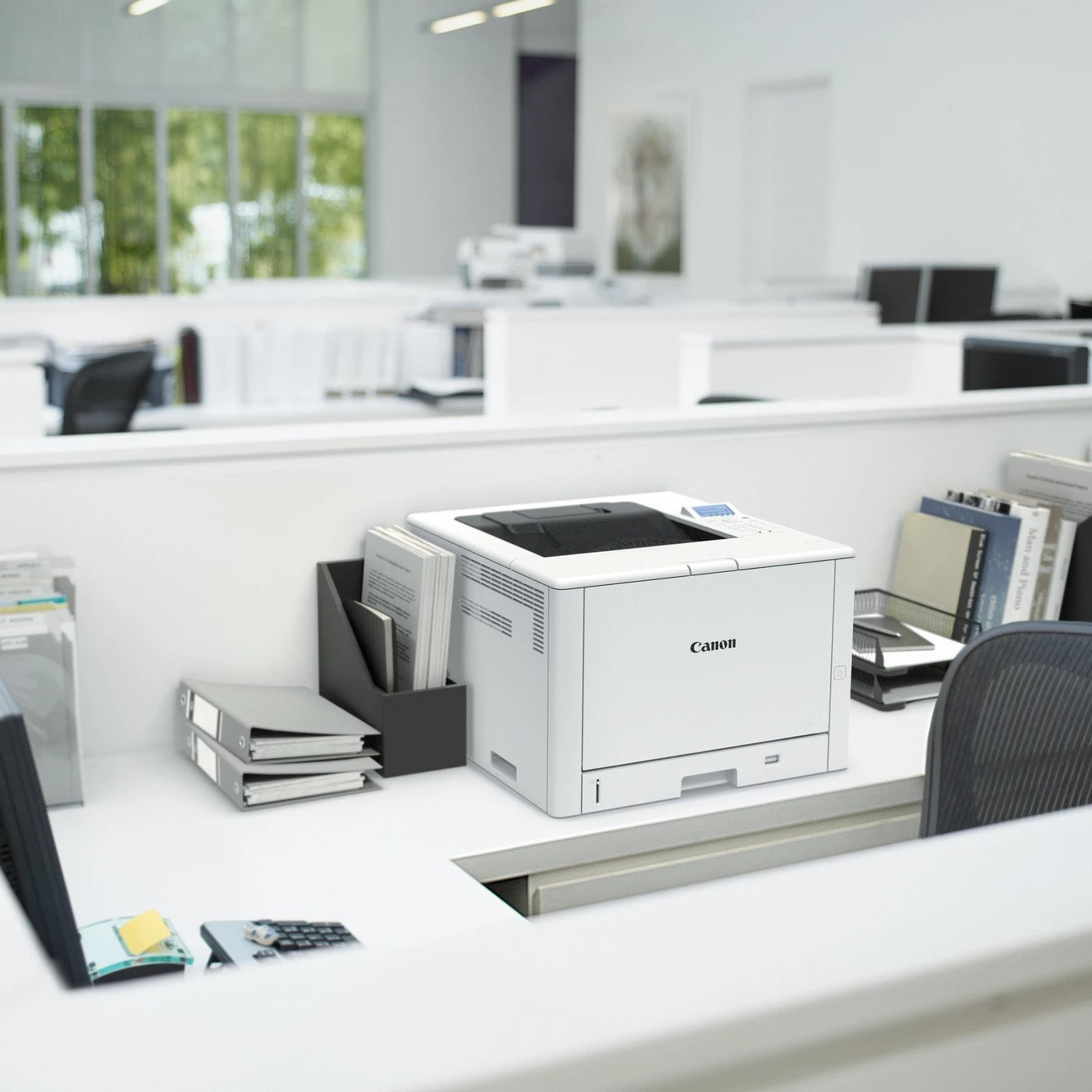

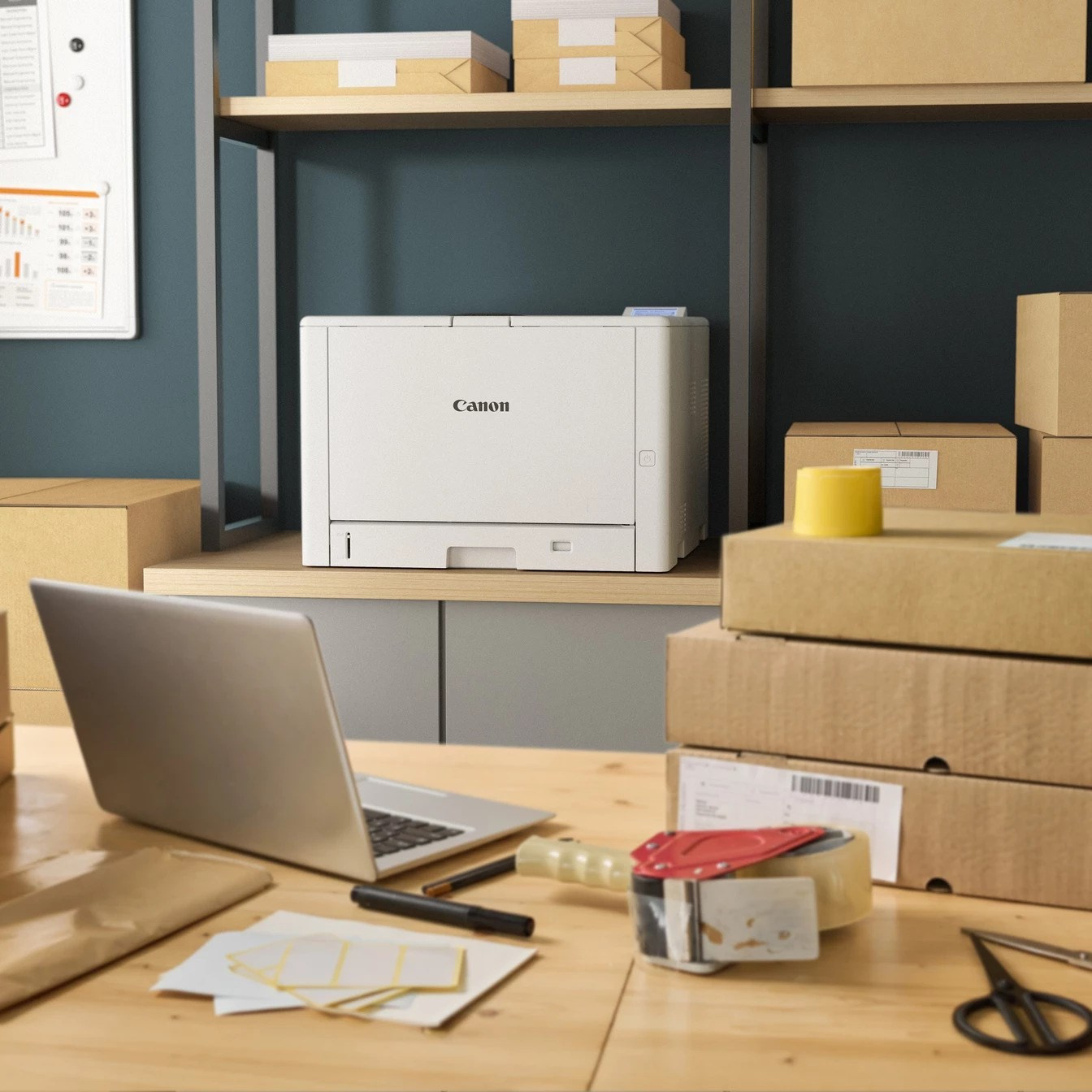

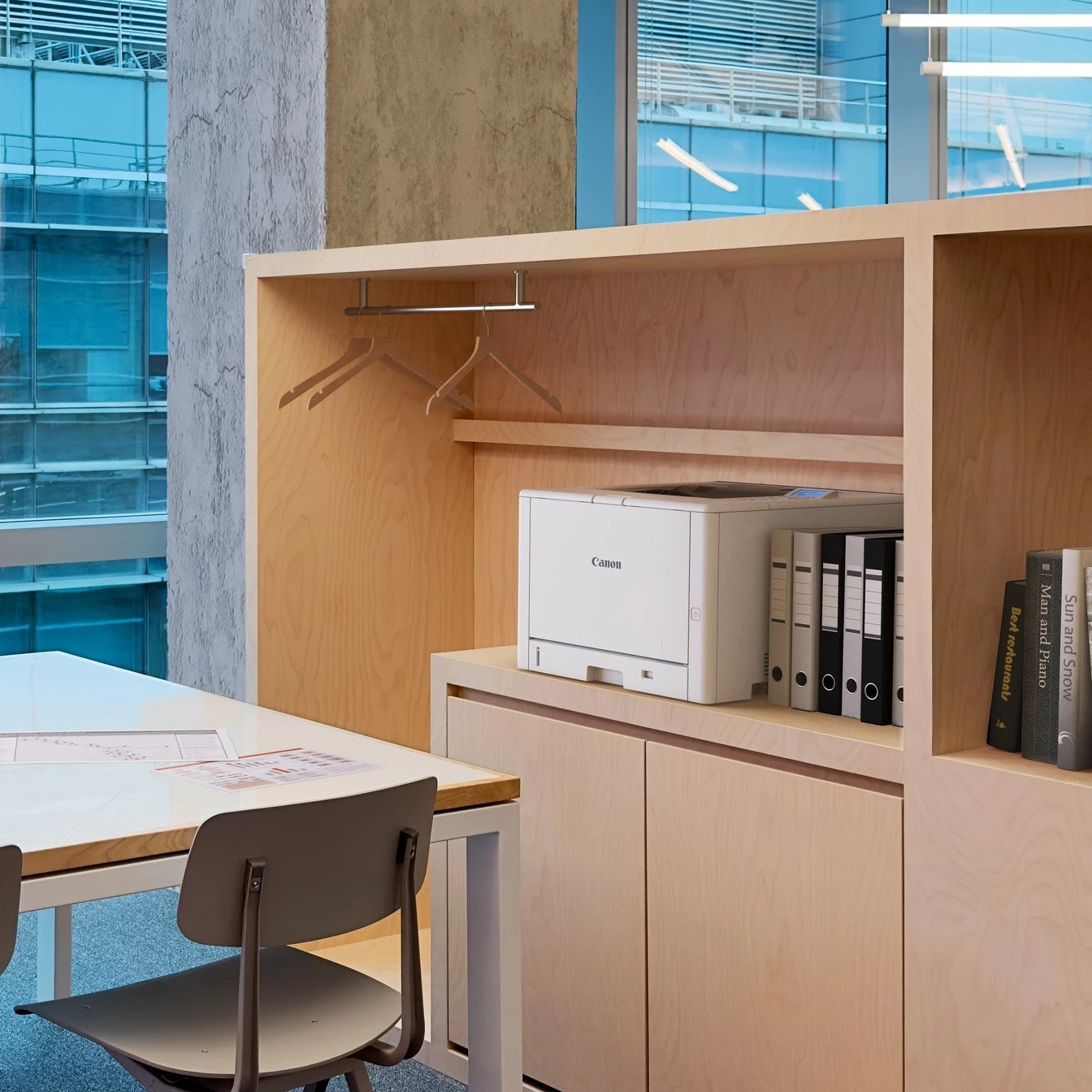

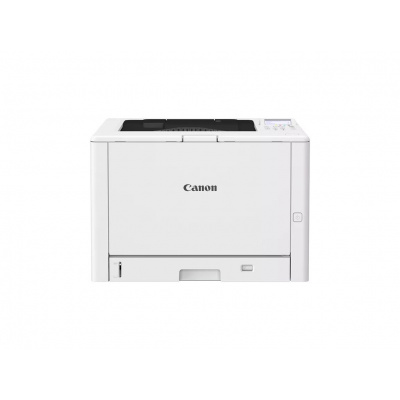

Expand your printing capabilities with a fast color laser printer for A3 format, boasting an innovative space-saving design that easily fits into any office.
High-quality output
Thanks to the new toner and image processing feature, you can create vivid and engaging color prints. Print on a wide range of media, including banners up to 1,320 mm in size.
Robust Security
Device protection is ensured by robust security features, including multi-factor authentication, which restricts access to your company's sensitive information.
Easy User Maintenance

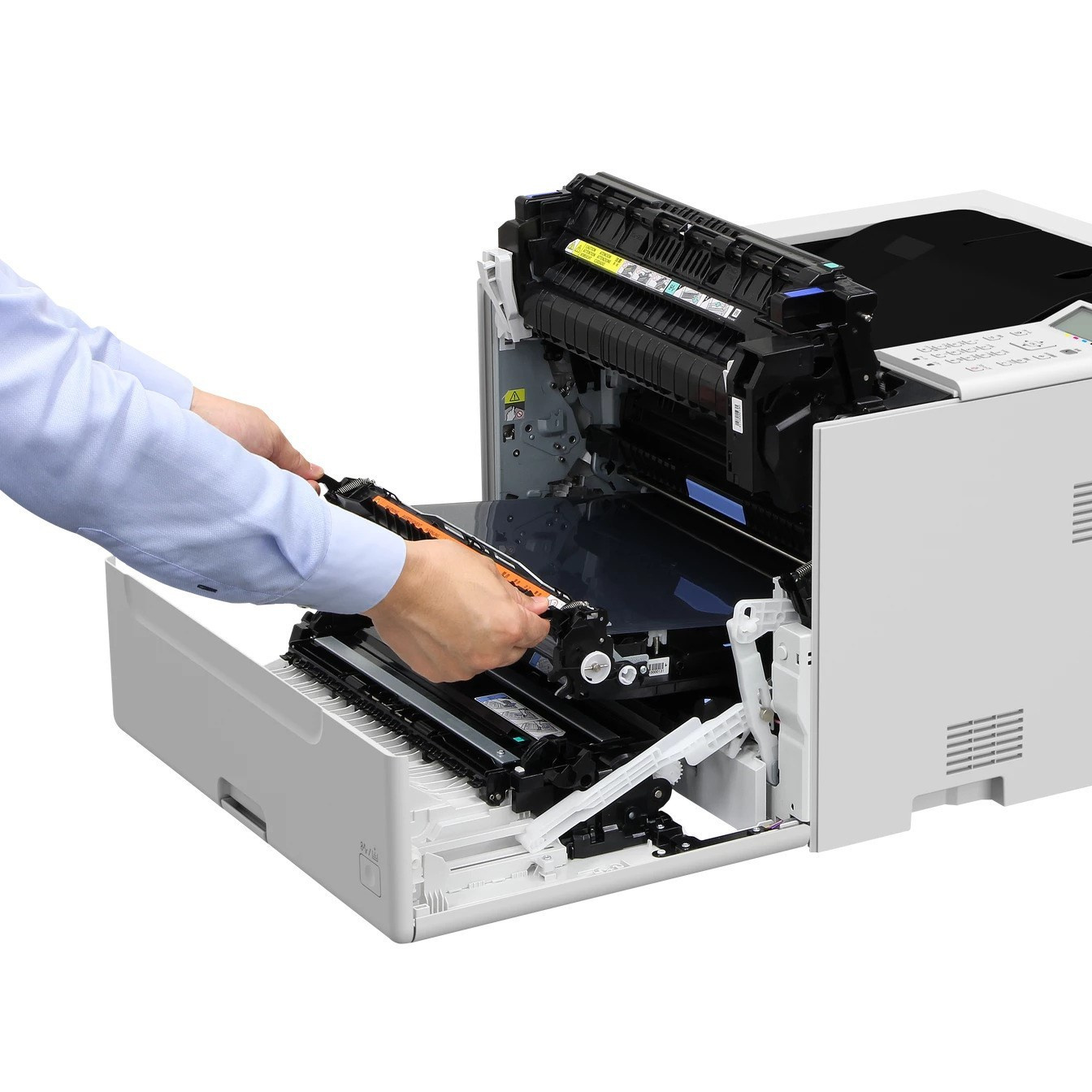

The new all-in-one cartridge and QR code linking to the online user manual make user maintenance easy.
General Specifications | |
---|---|
Device Type | Laser Printer |
Available Functions | |
Print Specifications | |
Print Speed | 36 pages/min |
Printing method | Color laser printing |
Print resolution | Up to 1,200 × 1,200 dpi |
Warm-up time | Approx. 22 seconds or less from power on Approx. 2 seconds or less from power on (quick mode) |
First Print Out Time | Color: approx. 12.54 s Black and white mode: approx. 11,57 s |
Printer Languages | UFRII (Ultra Fast Rendering), PCL5c1, PCL6, Adobe® PostScript3 |
Fonts | 105 PCL fonts (93 Roman, 10 bitmap fonts, 2 fonts OCR) Andalé Mono WT J /K /S /T (Japanese, Korean, simplified and traditional Chinese)2 Barcode fonts3 136 PostScript fonts |
Print margins | 5 mm top, down, left and right |
Advanced Printing Features | Encrypted Secure Print Secure Print Print from USB Memory Device (JPEG/TIFF/PDF/XPS) Barcode Printing4 iOS: AirPrint, Canon PRINT application Android: certified for Mopria technology, Canon Print Service plug-in module, Canon PRINT application Microsoft Universal Print |
Media Handling | |
Paper Input (Standard) | 250-sheet tray 100-sheet multipurpose tray |

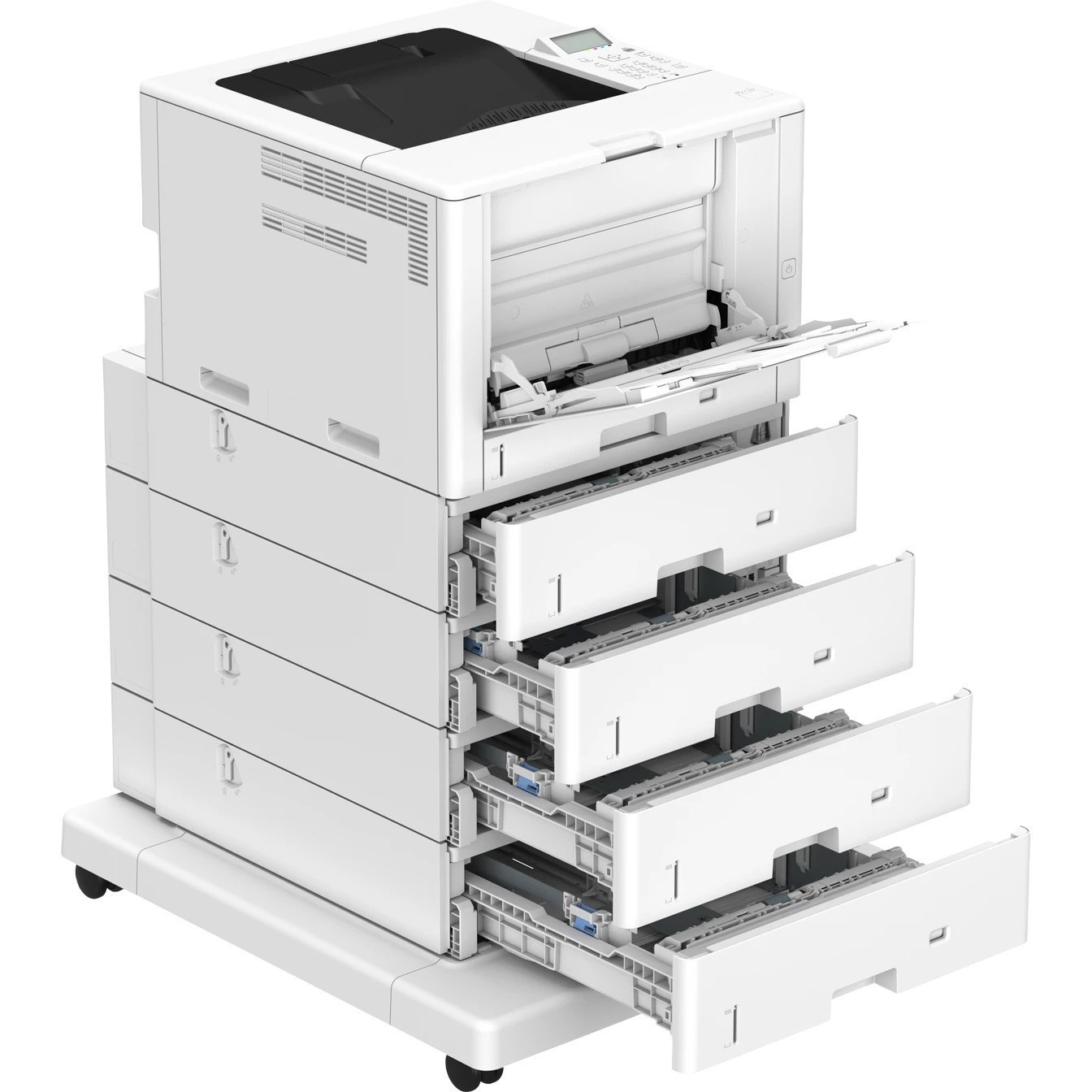

Paper Input (Optional) | 4× 550-sheet tray (Paper Feeder PF-L1 – Paper Feeder PF-L) |
Maximum Paper Input Capacity | 2,550 sheets |
Paper Output | 200 sheets |
Media Types | Multipurpose tray: plain paper, strong paper, thin paper, coated paper, rough paper, labels, postcard, envelopes Tray: plain paper, strong paper, thin paper, coated paper, coarse paper |
Media sizes | Tray (standard): A3, B4, A4, A4 (landscape), B5 (landscape), A5, A5 (landscape), B6, LDR, LGL, LTR, EXE User size – width: 85 to 297 mm, length: 148 to 431,8 mm Multipurpose tray: A3, B4, A4, A4 (landscape), B5, B5 (landscape), A5, A5 (landscape), B6, A6, LDR, LGL, LTR, EXE, index card User size – width: 64 to 297 mm, length: 120 to 431,8 mm Banner paper – width: 200 to 297 mm, length: 431,9 to 1,320 mm Tray (optional): A3, B4, A4, B5, A55, A5 (landscape), B6, LDR, LGL, LTR, EXE User size – width: 85 to 297 mm, length: 148 to 431,8 mm{foot} |
Media Weights | Tray (standard and optional): 60 to 163 g/m2 Multipurpose Tray: 60 to 250 g/m2 (except coated paper); 100 to 220 g/m2 (coated paper) |
Duplex Printing | Automatic Media Types: plain paper, strong paper, thin paper Tray: A3, B4, A4, B5, B5 (landscape), A5, A5 (landscape), LDR, LGL, LTR, EXE User size: min. 148 × 148 mm, max. 297 × 431.8 mm 60 to 163 g/m2 |
Interface and Software | |
Interface Type | USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wi-Fi – 802.11b/g/n, direct wireless connection |
Operating System Compatibility | Windows® 11 / Windows® 10 / Server® 2022 / Server® 2019 / Server® 2016 / Mac OS X version 10.14 and higher, Linux6 |
Network Protocol | Printing: TCP/IP (LPD / Port 9100 / IPP / IPPS / FTP / WSD) Management: SNMPv1, SNMPv3 (IPv4, IPv6) Security: TLS1.3, IPSec, IEEE802 authentication.1X (LAN/WLAN), SNMPv3, firewall functions (IP/MAC address filtering), support for two types of networks (wired LAN / wireless LAN, wired LAN / wired LAN), deactivation of unused functions (activation/deactivation of protocols/applications, activation/deactivation of remote user interface, activation/deactivation of USB interface), separation of communication lines (USB port) Security (wireless connection): Infrastructure mode: WEP(64/128 bits), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA3-SAE (AES), WPA-EAP (AES), WPA2-EAP (AES), WPA3-EAP (AES) Access point mode: WPA2-PSK (AES) Wi-Fi Direct mode: WPA2-PSK (AES) |
Printer Software and Management | Remote User Interface (RUI), Remote Operation Viewer tool, Department ID Management, Toner Status Tool, iW Management Console: Server software for centralized management of a group of devices eMaintenance: built-in RDS allows for providing remote eMaintenance services such as meter reading status detection, automatic consumable management, and remote diagnostics. Content Delivery System: The server platform enables automatic firmware updates on the device. Compatibility with uniFLOW online / uniFLOW |
General Features | |
Recommended Monthly Print Volume | 2,500 to 7,500 pages per month |
Duty Cycle | Up to 120,000 pages7 |
Processor Speed | 1,6 GHz × 2 |
Memory | 2 GB |
Storage | 32GB eMMC storage (15GB free space) |

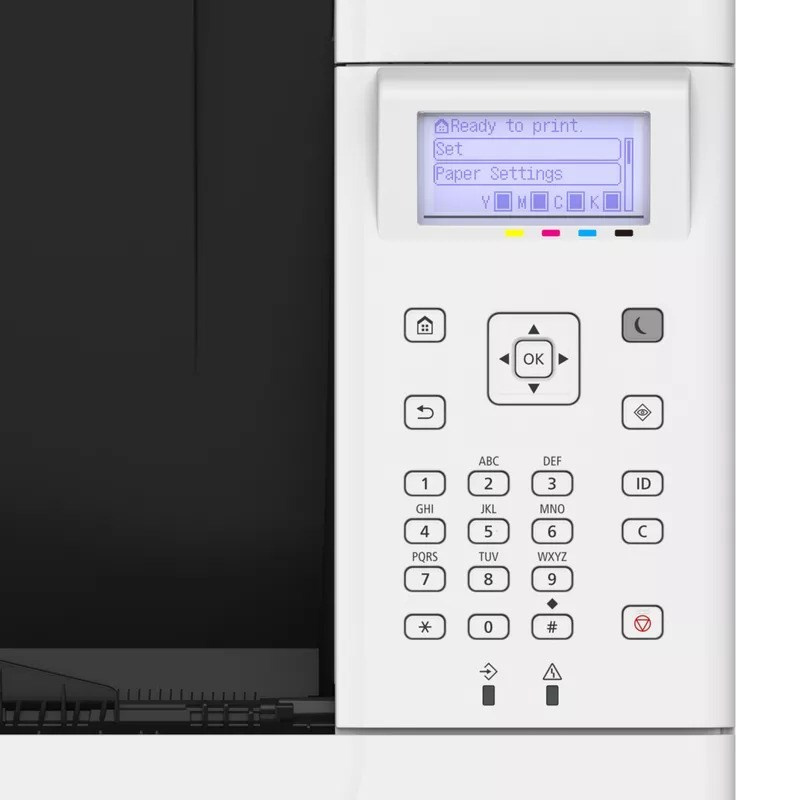

Control Panel | LCD display with 5 lines, 5 LED indicators (Online, Připraveno, Zpráva, Job and Energy saver), buttons, numeric keypad with 10 buttons |
Dimensions with compartments (W × D × H) | 499 mm × 525 mm × 340 mm |
Weight | Main unit: approximately 37,3 kg Main unit + 4× paper feeder PF-L1 (Paper Feeder PF-L1) + plain pedestal BA1 (Plain Pedestal BA1): approximately 104 kg |
Operating Environment | Temperature: 10 to 30 °C Humidity: 20 to 80% RH (non-condensing) |
Power Consumption | Maximum: approximately 1,500 W or less During operation: approx. 600 W or less Standby mode: approximately 30 W or less Sleep mode: approximately 1 W or less Typical Electricity Consumption (TEC): 0.37 kWh/week |
Noise Levels | Noise Level8: In operation: 70.4 dB or less Standby mode: silent9 |
Consumables | |
Cartridges | TONER T16, black (21,000 pages10) TONER T16, cyan/magenta/yellow (14,000 pages11) |
Accessories and Options | |
Items | Barcode Printing Kit-D1 (enables barcode printing) PCL Font Set-C1 (enables Unicode font printing in SAP and supports Andale font) MiCard Multi (card reader for identification using RFID or magnetic cards with uniFLOW software) MiCard Plus (card reader for identification using RFID or magnetic cards with uniFLOW software) Paper Feeder PF-L1 Plain Pedestal BA1 |
