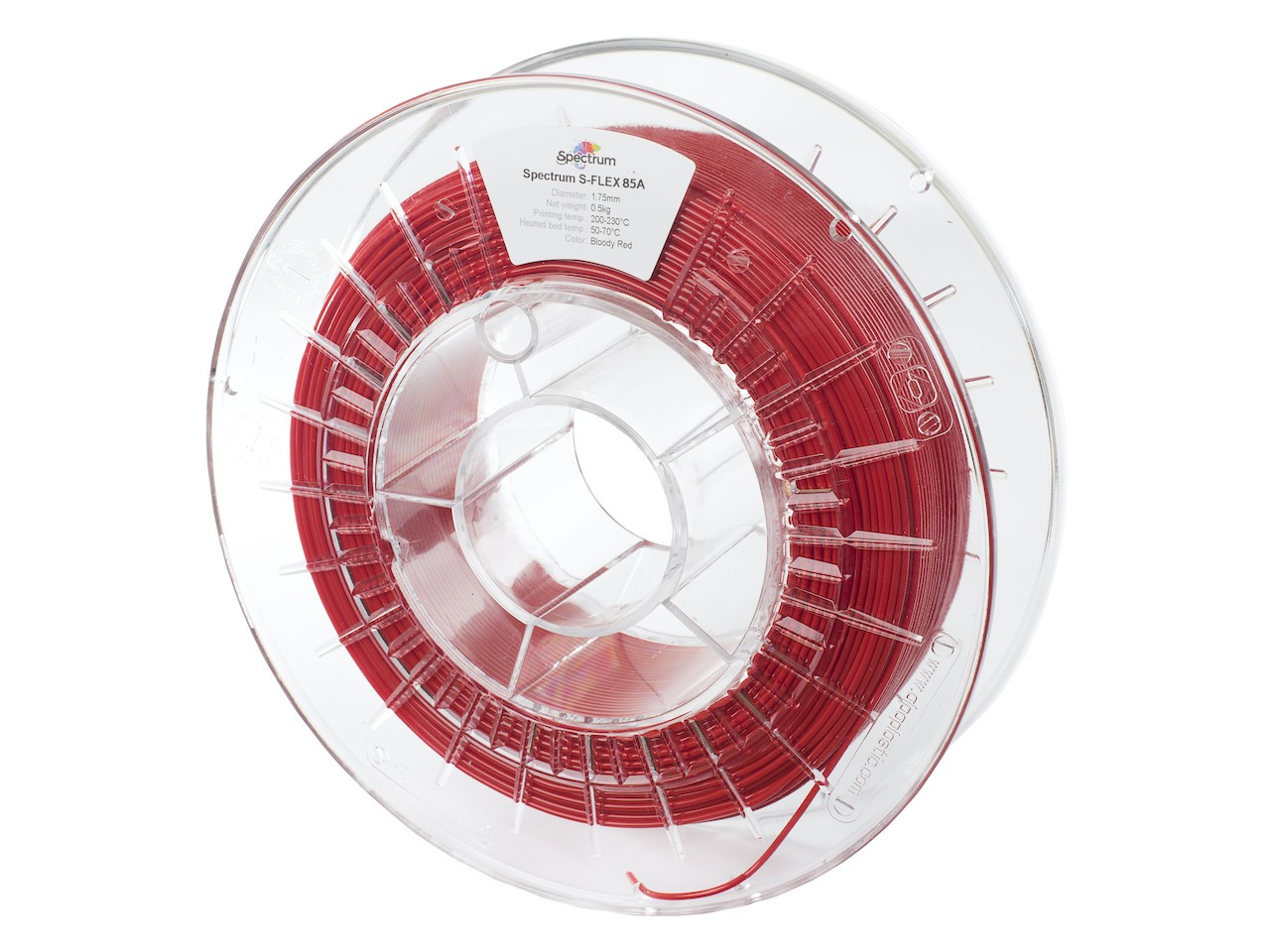

Spectrum 80573 3D filament, S-Flex 85A, 1.75mm, 0.5kg, BLOODY RED

Spectrum 80573 3D filament, S-Flex 85A, 1.75mm, 0.5kg, BLOODY RED
Images are for illustration purposes only.
37.76 €
31.21 € (excl. VAT)
AvailabilityIn external stock
Our code: i654_TIFSCE434

Parameters

Product description

Flexibility with very good impact resistance and thermal insulation

Spectrum S-Flex 85A is a filament based on thermoplastic polyether polyurethane. In the field of additive manufacturing, S-Flex 85A is a material characterized by a relatively easy and trouble-free 3D printing process. Another advantage that allows for a perfect print is the very good adhesion of the first layer of the printed part to the work surface, regardless of whether it is made of glass, steel, plastic, or another material.

Low processing shrinkage and high flexibility significantly reduce the risk of so-called waviness of the edges of manufactured parts. The distinguishing mark in the thread name 85A refers to the material's hardness on the Shore scale and classifies Spectrum S-Flex 85A into the category of hard elastomers. This property, in terms of the 3D printing process, reduces the risk of filament deformation in the feeding system leading the material to the print head. This allows for slightly faster printing compared to other, more compliant elastomers.

Parts made from Spectrum S-Flex 85A are characterized by very high resistance to hydrolysis (a type of degradation caused by the presence of water), good recyclability, and very good resistance to dynamic forces.
Thanks to these properties, it is possible to print 3D parts that protect surfaces exposed to impact (bumpers, sharp edge protectors), sealing and protective elements with high chemical resistance, as well as thermal insulators.


Key Features:

- high resistance to hydrolysis
- up to 650% elongation at break
- Shore-A hardness 85
- high resistance to tearing and tension
- low shrinkage
- resistance to many common industrial oils and chemicals
- reduced chain count when the printer is idle


Applications:

- production of seals with high chemical resistance
- production of items that must be used as energy absorbers
- functional parts
- all kinds of bumpers, vibration dampers
- protective casings
- snap-fit parts
- sleeves
- hinges
- bumpers and flexible spacers
- sealing parts with increased stiffness
- spring damping elements for use in machinery manufacturing and modeling
- flexible belts with high strength
- covers and casings for various devices


Filament Specifications:

- filament diameter: 1.75mm/2.85mm
- extrusion temperature: 200-230°C
- bed temperature: 50-70°C
- print speed: 20-70mm/s
